Door Frame Metal Detector
The THS SX are one of the world’s finest walk through/door frame metal detectors and works on a superior pin point technology and unmatched discrimination features. It has a unique multi zone design which guarantees, first-rate performance to customers. Comprising of all safety features, the THS SX door frame metal detectors are truly the first choice of metal security door for professionals worldwide.
 International norms (NILECJ-0601 L1-5/IP54/IEC 348/EN60950 Class1) In conformity with CE European Union Norms and produced under ISO 9001: 2000 QMS |
Multi-Zone – minimum 9 real detection zones |
Auto Calibration (Automatically calibrates itself up to Environmental Conditions) |
Human friendly VLF technology (Certified) Green/Red bicolor traffic through LEDs |
These metal detectors have light indicators at side panels and control panel |
20 sensitivity levels, 5 Security levels set to International Security Standards (fixed NILECJ security levels), 246 adjustable sensitivity steps at each, applicable to all zones separately (Jailhouse Requirements Met) |
Separate Zone Sensitivity Settings |
SMART DETECTOR – Automatic Sensitivity Program selects the correct sensitivity for a specific weapon or a recognized test object (fast consistent calibration) |
Superior Discrimination, Precise target location identification |
Graphic zone display |
Metal Density Display at 10-level-VU meter with green, yellow, red LEDs Environment magnetic noise level detection display on LCD Screen Adjustable audio alarm at 10 tons/level |
Alarm Counter & Five Digit Separate incoming & outgoing counters (Visible/invisible) Mechanical Lock for control panel and four-digit changeable digital Pin Code Automatic Failure Display |
Standard Uninterruptible Power Supply (UPS) enabling 4 hours operation without mains |
Reloading the factory default settings by one-touch button Easy programming and monitoring with LCD display Relay outputs for recording CCTV, controlling turnstiles, etc on Alarms |
Modem and RS232 output for SCADA remote data communication- Send Receive – Change settings by direct cable or modem over Telecom Lines by PC- Audible & Visual alarms can be monitored by PC and can be logged into Hard Disk (optional Software) |
Certificate approved “Safe for wearers of pacemakers and pregnant women” — No effect to magnetic media (eg. Memory sticks, tape, proximity cards) |
Easy-to-mount and assemble walk through door frame metal detector (15 minutes) |
Hand-Held Metal Detectors
After many years of active service our “AD” series hand held metal detectors need no introduction. They have been operating around the clock under some of the harshest working conditions year after year.
As a result of our uncompromising standards in manufacturing and design, Adams Electronics has a continuous development program in progress. The ongoing improvement of micro-technology has allowed us to constantly upgrade our “AD” series detectors, maintaining our position at the cutting edge of modern technology.
With many thousands of these detectors in use around the world, the Adams AD Series detectors are the preferred choice of metal detector where superlative performance, durability and reliability are essential requirements.
| Dimensions | Length – 11.5cm(4.5 inches), Width – 6.5cm(2.5 inches) Height – 3cm (1.25 inches) |
| Weight | 6.4oz or 181 gms including battery |
| Sensitivity | Target size 0.1gms Fully automatic. No adjustment necessary. |
| Operating Temperature | -20oC to +65oC |
| Storage Temperature | -30oC to +80oC |
| Humidity | 98% |
| Ingress Protection | IP64 (IEC529) |
| Power Consumption | Standby |
| Active Mode Current (no detection) | Less that 1 mA |
| Active Mode Current (metal detected) | 6.5 mA |
| Battery | One 9 Volt block battery MN 1604, 6LR61 or equivalent alkaline disposable or rechargeable |
| Operating time, TZ-20(V) | 150hours continuous (or greater) at +25C (alkaline battery) 80 hours at +25C(rechargeable battery single charge) |
| Operating time, TZ-20 | 550mA hours (Standard 9 Volt Block battery) 180 mA hours NiCad rechargeable |
| Battery Management System | Precision monitoring. Low voltage or defective battery is signalled by a continuous vibration (TZ-20(V) or audio tone (TZ-20) alarm signal) |
| Alarm Indication | Audio/visual (TZ-20) Vibration alarm (tactile) indicator (TZ-20V) |
| Speed of detection | Ultra fast; ‘Detect-alarm-reset’ ready for another target-0.1 second |
| Size of target indication | At constant sweep speed: short digital pulse=small target. Long pulse=large target |
| Simple single control operation | (Single switch On/Off) |
| Instant response to all metals | tested and approved to EEC EN5008-1 Table 1. EN50082-1 Table 1:1.1 |
| Technology | Radiated emissions. Conforms to international standards IEG, NILEC STANDARD – 0602.02-FCC, FAA. |
| Medically tested and approved | No risk to personal with pacemakers |
Baggage Scanners
The CX6040BI is an advanced daul-energy X-ray inspection system. CX6040BI is perfectly suitable for all security and customes applications.
World-leading image quality with high wire resolution of 38AWG
Threat Image Projection (TIP) ready X-ray system
Complying with all international safety and health standard
High reliable operating and data storage safety are guaranteed by applications of industrial computer, embedded system, and data access strategy and configurations
Modular design and constructions, combined with full built-in diagnostic facilities
Explosives and narcotics detection and alarms according to the atomic number signatures
X-ray leakage around the equipment is close to natural background level
Ergonomic keyboard and user interface design ensure the efficiency and professionals of baggage screening operating
Optimized concept of operations, centralized image identify and storage capability implemented by various network applications
| General Specifications | |
| Tunnel dimensions (in mm) (w x h) | 606 X 420 |
| Conveyer speed (in m/s) | 0.20 |
| Conveyer height (in mm) | 680 |
| Max. load (in kg) | 160 |
| Image Performance | |
| Wire resolution | 0.1mm (34AWG)0 |
| Steel penetration (in mm) | 34 |
| Display resolution | 1280 x 1024 |
| Image Processing System | |
| Image enhancement | Color/BW, negative, high/low penetration, organic/inorganic stripping, general enhancement, multi-absorptivity, and suspect material enhancement, etc. |
| Material classification | According to atomic number signatures |
| ROI & zoom | Steps/step less zoom, up to 32 times enlargement |
| Image recall | Preceding images recallable |
| Image store capability | Up to 50,000 |
| Miscellaneous functions | |
| Standard functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self-test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and training, etc. |
| Optional functions | Explosives/narcotics detections, high-density area alert, threat image projection (TIP) |
| Health & safety | |
| X-ray leakage | Less than 1µGy/h (5cm from the housing),complying with all published international standards |
| Film safety | Guaranteed for high speed film up to ASA/ISO1600 (33DIN) |
| Installation data | |
| Dimensions (in mm) (l x w x h) | 2042 x 850 x 1300 |
| Weight (in kg) | 500 |
| Storage temperature/humidity | -40°C~ +60°C/ 5% ~ 95% (non-condensing) |
| Operating temperature/humidity | 0°C +40°C / 5% ~ 95% (non-condensing) |
| Power supply | 220VAC/110VAC (-15%~ +10%), 50 Hz/60 Hz ±3 Hz |
| Power consumption | 0.6kVA |
| X ray generator voltage | 160 kV |
Under-Vehicle Scanning System
“NORKA” is a unique portable X-ray detector with a minifocus and microfocus constant-potential X-ray source. The voltage can be adjusted from 2 0 to 160kV. This allows inspecting objects made from (20-70kV is the optimal voltage for checking mail and thin objects, while 100-160kV works best for baggage and thick objects). One of the advantages of this X-ray inspection system is its ability to inspect areas of an object in fine detail using geometric magnification (up to 40 times).
The UVSS provides high resolution stitched image of the underside of the vehicles |
It scans vehicles of all categories and sizes |
Scans any moving vehicle (up to a speed of 30 Kmph) and produces a high quality image of its underside, in real-time |
Provides a high resolution stitched image of the underside of the vehicles |
Facilitates intelligent and quick comparison of the current underside image with archived one of the same vehicle. |
The 3 Auxiliary cameras provide for additional view of ‘Hard-to-See’ areas, in video motion. |
State – of – the –Art software for User-friendly interaction with the system. |
The UVSS can be networked to centralized monitoring and database management system. |
Automated classification and alert facility. |
The UVSS can be seamlessly integrated with other security equipment like boom barriers, tyre killers, access control systems etc. |
Efficient viewing and monitoring is possible. |
The under vehicle scanner ensures quick detection of foreign items e.g. explosives, bomb etc. |
One under vehicle surveillance system fits all. |
Facilitates peak hour inspection without stopping any vehicle. |
Very high output saves time while maintaining high standards. |
The UVSS is a crucial time saver |
Detection of any unusual modification shall enhance chances of detecting any disguised object. |
A convenient security aid for crucial and large events such as exhibitions. |
Crucial aid in post event analysis. |
Provides One – stop solution for all security needs |
Easier to navigate, ensure better usage of the system |
| Main Camera | Sensor Type | Linear Colour CCD |
| Resolution | 4096 Pixels | |
| Video Format | Camera Link | |
| Certifications | ||
| Dimensions in mm | 56(W), 60(H), 39.4(L) | |
| Auxiliary And License Plate Cameras | Sensor Type | Colour Area CCD |
| No. of Pixels | 110 K Pixels | |
| Video Format | NTSC/PAL | |
| Resolution | 480 TV Lines | |
| Power Supply | 12 V DC | |
| Processing Units | Processor | Pentium 4 (3GHZ) |
| Ram | 1 GB DDR | |
| Hard Disk Memory | 500 GB | |
| PCI Slots | 3 PCI Slots | |
| Sensor Unit | Type | Inductive Loop Sensor |
| Power Requirements | 12 V | |
| Output | NPN/ PNP | |
| Lighting Unit | Halogens / CFL | 12 V DC / 55 Watt x 4 in |
| 62 in x 60 in x 11 in | ||
| 100 in x 72 in x 4 in |
X-Ray Detector System
The THS SX are one of the world’s finest walk through/door frame metal detectors and works on a superior pin point technology and unmatched discrimination features. It has a unique multi zone design which guarantees, first-rate performance to customers. Comprising of all safety features, the THS SX door frame metal detectors are truly the first choice of metal security door for professionals worldwide.
- Control unit based on an industrial microprocessor and 12” TFT LCD with touch screen
- Digital camera unit (1300×1024, 14-bit)
- Interchangeable X-ray converter viewing area: 300×400 mm (standard) with converter unit support. Interchangeable
- Converters are available on request: 190×250 and 410x550mm
- Specially designed minifocus & microfocus X-ray digital generators
- From the RAP series (constant potential with the voltage up to 300kV)
- Focusing device (optional for microfocus X-ray units)
- Set of connecting cables
- PC mouse & keyboard (optional)
- USB-flash drive (optional)
- Rechargeable battery & charging device
- User’s manual
- Set of transport bags or transport case
| General specifications | |||
| X -RAY UNIT | NORKA – 160 | NORKA – 120 | NORKA – 150 |
| Operation Mode | 5-25 second exposures in single energy mode | ||
| Max. X-ray tube voltage, kV | 160 | 120 | 150 |
| Focal spot size, µm | 800 | 600 | 80 |
| Resolution (Copper Wire), µm | 80 | 60 | 40 |
| Total Penetration (Al equivalent),mm | 120 | 65 | 80 |
| Total Penetration (Fe equivalent),mm | 40 | 24 | 20 |
| X-RAY IMAGE CONVERTER | |
| Camera unit | Digital 1280×1024, 14 bit |
| Interchangeable converter, screening area, mm | 190×250 |
| 300×400 (standard) | |
| 410×550 | |
| CONTROL UNIT | TFT LCD / LAPTOP |
| Screen dimensions | 12” – 15” |
| Memory size (image number ) | 30000 |
| Battery Life | 2 Hours, or 60 X-ray images acquisitions |
| Output | 60 pictures per hour |
| Operating Temperature | – 20°C ÷ +50 °C(-4°F ÷ +122°F) |
| Relative humidity | 90% (35°C or 95°F) |
| Weight, kg* (*standard system configuration (NORKA 150)) | less than 29 kg |
XCAT Bomb Detector
The XCAT is intended for presumptive testing. Sampling cards are dedicated to detecting either individual analytes or groups of related analytes.
XCAT Applications
Among the intended users are: law enforcement, the military, federal agencies (FBI, CIA, DOI, DEA, DOS), border control, forensics experts, commercial security, fire departments, special events screening, home & business (parental, insurance).
The XCAT uses detection cards with specially formulated optical detection inks and software to identify characteristics unique to each individual or group of chemically related analytes.
Each analyte or group of analytes is detected with a dedicated card.
The unit uniquely identifies and analyzes each card (eg. Cocaine or GSR) and returns a red or green light signal to the user simply indicating “detection” or “no detection”.
Bomb Detection Kits
Shelf Life | 12 months1 |
Operating Temperature Range | 2ºC to 50ºC (35ºF to 122ºF) |
Operating Humidity Range | 10% to 95% RH |
Sensitivity | Trace Level (can also detect bulk levels) |
Explosives Detected | Nitroaromatics, e.g. TNT, DNT, Tetryl |
Time for Color Change | Less than 3 minutes |
Kit Size | 131 mm x 92 mm x 17 mm (5-1/4” X 3-3/4” X 3/4”) |

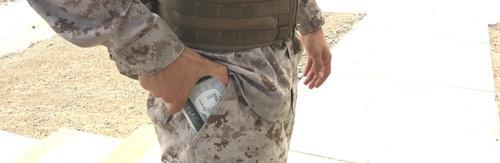

Hand-Held Explosive Detection Kits
Shelf Life | 12 months1 |
Operating Temperature Range | 2ºC to 50ºC (35ºF to 122ºF) |
Operating Humidity Range | 10% to 95% RH |
Sensitivity | Trace Level (can also detect bulk levels) |
Explosives Detected | Nitroaromatics, e.g. TNT, DNT, Tetryl |
Time for Color Change | Less than 3 minutes |
Kit Size | 131 mm x 92 mm x 17 mm (5-1/4” X 3-3/4” X 3/4”) |
